description: >-
  Aidbox supports machine to machine (m2m) authentication via client credentials
  oAuth 2.0 flow
---

# How to configure Client Credentials Grant

The Client Credentials grant is used when applications request an access token to access their own resources, not on behalf of a user (for example, background services and daemons). It must be used only by confidential clients.

![Basic scheme](https://3650793924-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LHqtKiuedlcKJLm337_%2F-LYBWzPvCyK2eQ1OtRKA%2F-LYBg9CIfrueRqkomucK%2FUntitled%20Diagram.svg?alt=media\&token=268bc8af-85cc-4613-9290-f13b3d171389)

Aidbox OAuth module supports Client Credentials Grant flow in different formats. The first one is in strict adherence to [specification](https://tools.ietf.org/html/rfc6749#section-4.4.2) for better compatibility. The second one uses JSON request as a more modern and simple way. Read the official [OAuth 2.0 specification](https://tools.ietf.org/html/rfc6749#section-4.4) for more details.

### Easy way

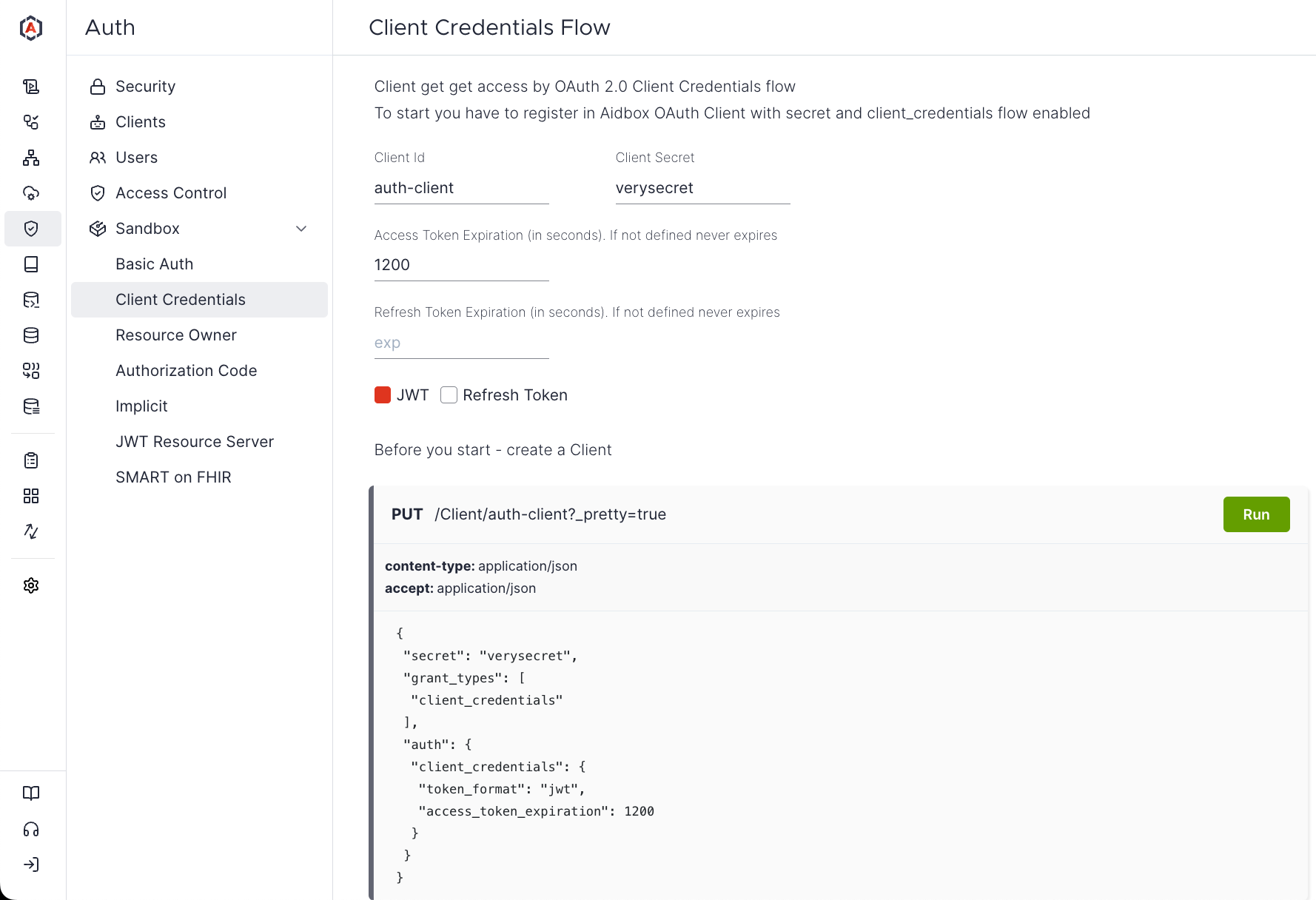

The easiest way to test Client Credentials Grant flow is to run through the [Aidbox Sandbox UI](#auth-sandbox) (_Auth -> Sandbox -> Client Credentials_).

<figure><img src="https://3650793924-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LHqtKiuedlcKJLm337_%2Fuploads%2Fgit-blob-f557c80a037cb2225f190f33cae87df93ddcf3ee%2F016836ab-2b47-4ff1-bd81-5fd5f8896f6d.png?alt=media" alt=""><figcaption><p>Sandbox UI</p></figcaption></figure>

### Configure Client

To start using this flow you have to create and configure Client. The only required parameters is `secret` and you also have to enable this flow for client by `grant_types: ['client_credentials']`

<pre class="language-yaml"><code class="lang-yaml"><strong>PUT /Client/api-client
</strong>Accept: text/yaml
Content-Type: text/yaml

secret: verysecret
grant_types:
  - client_credentials
</code></pre>

You can also configure token's format and expiration, as well refresh the token:

| attribute                                                 | options       | desc                                                    |
| --------------------------------------------------------- | ------------- | ------------------------------------------------------- |
| _auth.client\_credentials_**.token\_format**              | jwt           | use access token in jwt format                          |
| _auth.client\_credentials._**access\_token\_expiration**  | int (seconds) | token expiration time from issued at                    |
| _auth.client\_credentials_**.refresh\_token**             | true/false    | enable refresh\_token                                   |
| _auth.client\_credentials_**.refresh\_token\_expiration** | int (seconds) | refresh token expiration time from issued or last usage |

```yaml
PUT /Client/api-client
Accept: text/yaml
Content-Type: text/yaml

secret: verysecret
grant_types:
  - client_credentials
auth:
  client_credentials:
    access_token_expiration: 600 # 10 minutes
    token_format: jwt
    refresh_token: true
    refresh_token_expiration: 86400 # 1 day
```

Since by default new client has no access to any resources, you probably want to configure AccessPolicy for this specific client:

```yaml
PUT /AccessPolicy/api-client
Accept: text/yaml
Content-Type: text/yaml

engine: allow
link:
  - id: api-client
    resourceType: Client
```

### Get Access Token

The next step is to exchange client id and secret for Access Token.

Using Authorization header `{base64(Client.id + ':' + Client.secret)}` or by JSON request with `client_id` and `client_secret` in body:

{% tabs %}
{% tab title="Request with Authorization header " %}
```yaml
POST /auth/token
Authorization: Basic YXBpLWNsaWVudDp2ZXJ5c2VjcmV0
Content-Type: application/x-www-form-urlencoded

grant_type=client_credentials
```
{% endtab %}

{% tab title="Request with credentials in body" %}
```yaml
POST /auth/token
Content-Type: application/json

{
  "grant_type": "client_credentials",
  "client_id": "api-client",
  "client_secret": "verysecret"
}
```
{% endtab %}
{% endtabs %}

{% tabs %}
{% tab title="Response with simple client" %}
For simple client configuration you will get JSON with access\_token in response:

<pre class="language-yaml"><code class="lang-yaml"><strong>status: 200
</strong>
{
 "token_type": "Bearer",
 "access_token": "ZjQyNGFhY2EtNTY2MS00NjVjLWEzYmEtMjIwYjFkNDI5Yjhi"
}
</code></pre>
{% endtab %}

{% tab title="Response with JWT" %}
For JWT with refresh token you will get something like this:

```yaml
status: 200

{
 "token_type": "Bearer",
 "expires_in": 3000,
 "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJodHRwOi8vbG9jYWxob3N0OjgwODEiLCJzdWIiOiJhdXRoLWNsaWVudCIsImlhdCI6MTU1NDQ3MDA3NCwianRpIjoiOWJlMTY1YzMtOTQzZS00NGU0LTkxMWEtYzk1OGY3MWRhMTdkIiwiYXVkIjoiaHR0cDovL3Jlc291cmNlLnNlcnZlci5jb20iLCJleHAiOjE1NTQ0NzMwNzR9.cR9N1Z-pKidENTrtYu5aVADRzAigZM6RvoFAzbeLkBecRcY03j4VVXnqRG1yJo744FvJ0qfetHQ2JTSQFxLrtQ",
 "refresh_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJpc3MiOiJodHRwOi8vbG9jYWxob3N0OjgwODEiLCJzdWIiOiJhdXRoLWNsaWVudCIsImp0aSI6IjliZTE2NWMzLTk0M2UtNDRlNC05MTFhLWM5NThmNzFkYTE3ZCIsInR5cCI6InJlZnJlc2gifQ.lsxtjkW0MVku4lh1W-vOEz-4wJjRN-Dkmbt2NpjezPAGj-z7FBGVyKVfH8Q0nY0smuvUnkXEAxajIb_zZdXQtw"
}
```
{% endtab %}
{% endtabs %}

#### Audience

If you use JWT token format and provide in token request additional parameter `audience`, resulting token will set `aud` claim into value you've sent.

> ```
> The "aud" (audience) claim identifies the recipients that the JWT is
> intended for.  Each principal intended to process the JWT MUST
> identify itself with a value in the audience claim.  If the principal
> processing the claim does not identify itself with a value in the
> "aud" claim when this claim is present, then the JWT MUST be
> rejected.  In the general case, the "aud" value is an array of case-
> sensitive strings, each containing a StringOrURI value.  In the
> special case when the JWT has one audience, the "aud" value MAY be a
> single case-sensitive string containing a StringOrURI value.  The
> interpretation of audience values is generally application specific.
> ```

### Using Access Token

You can use access token in `Authorization` header for Aidbox API calls:

```yaml
GET /Patient
Authorization: Bearer ZjQyNGFhY2EtNTY2MS00NjVjLWEzYmEtMjIwYjFkNDI5Yjhi
```

{% code fullWidth="false" %}
```
curl -H 'Authorization: Bearer ZjQyNGFhY2EtNTY2MS00NjVjLWEzYmEtMjIwYjFkNDI5Yjhi' /Patient
```
{% endcode %}

### Refresh Access Token

To get new access token using refresh token

{% tabs %}
{% tab title="Request" %}
```yaml
POST /auth/token
Content-Type: application/json

{
  "grant_type": "refresh_token",
  "client_id": "webapp",
  "refresh_token": "eyJhb..PloA"
}
```
{% endtab %}

{% tab title="Response" %}
```yaml
status: 200

{
  "access_token": "eyJh..D8YA", # new access_token
  "expores_id": 600
}
```
{% endtab %}
{% endtabs %}

### Revoke Access Token (Close Session)

Aidbox create Session (resource) for each Access Token that can be closed with the special endpoint `DELETE /Session` with the token in the Authorization header:

{% code title="close-session" %}
```yaml
DELETE /Session
Authorization: Bearer ZjQyNGFhY2EtNTY2MS00NjVjLWEzYmEtMjIwYjFkNDI5Yjhi
```
{% endcode %}

Session is just Resource and you can inspect and manipulate with sessions by standard Search & CRUD API for example get all sessions - `GET /Session`
